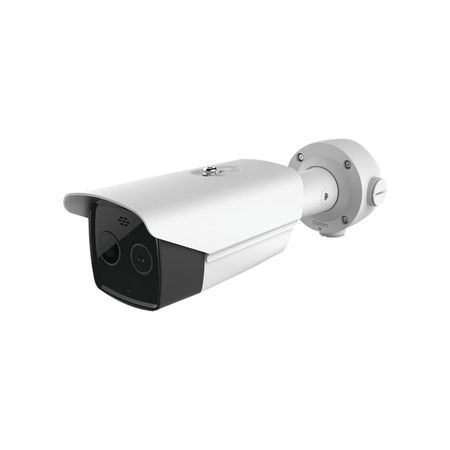

Temperature Screening Thermographic Bullet Camera

HIKVISION Thermal camera on action test

Thermal features

Optical
Image Sensor1/2.7″ Progressive Scan CMOS
Resolution2688×1520, 4MP
Min. IlluminationColor: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Field Of View84° × 44.8° (H × V)
Focal Length4mm
Focus ModeFixed
Shutter Speed1s to 1/100,000s
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Day & Night ModeIR cut filter with auto switch
WDR120 dB

Feature
Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel

Smart Function
Temperature MeasurementSupport 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Temperature RangeFrom 30°C to 45°C (86°F ~ 113°F)
Temperature Accuracy± 0.5 °C

Network
Main StreamThermal: 50fps(1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720);Optical: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Sub StreamThermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
SecurityPassword protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
Simultaneous Live ViewUp to 20

Interface
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
Alarm Input2-ch inputs (0-5vDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear Level; Impedance: 600Ω
RS4851, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
Analog Video Output1.0V [p-p]/75Ω, BNC, PAL/NTSC
Communication Interface1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
On-Board StorageBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording

General
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
WiperNo
User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
Power24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A
Power Consumption18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension376.1 mm × 119.1 mm × 118.1 mm (14.81″ × 4.68″ × 4.65″)
WeightApprox. 1.82 kg (4.01 lb)
