Thermal Camera solution – DH-TPC-BF5421-T + JQ-D70Z (Copy)

39,500.00AED 27,000.00AED

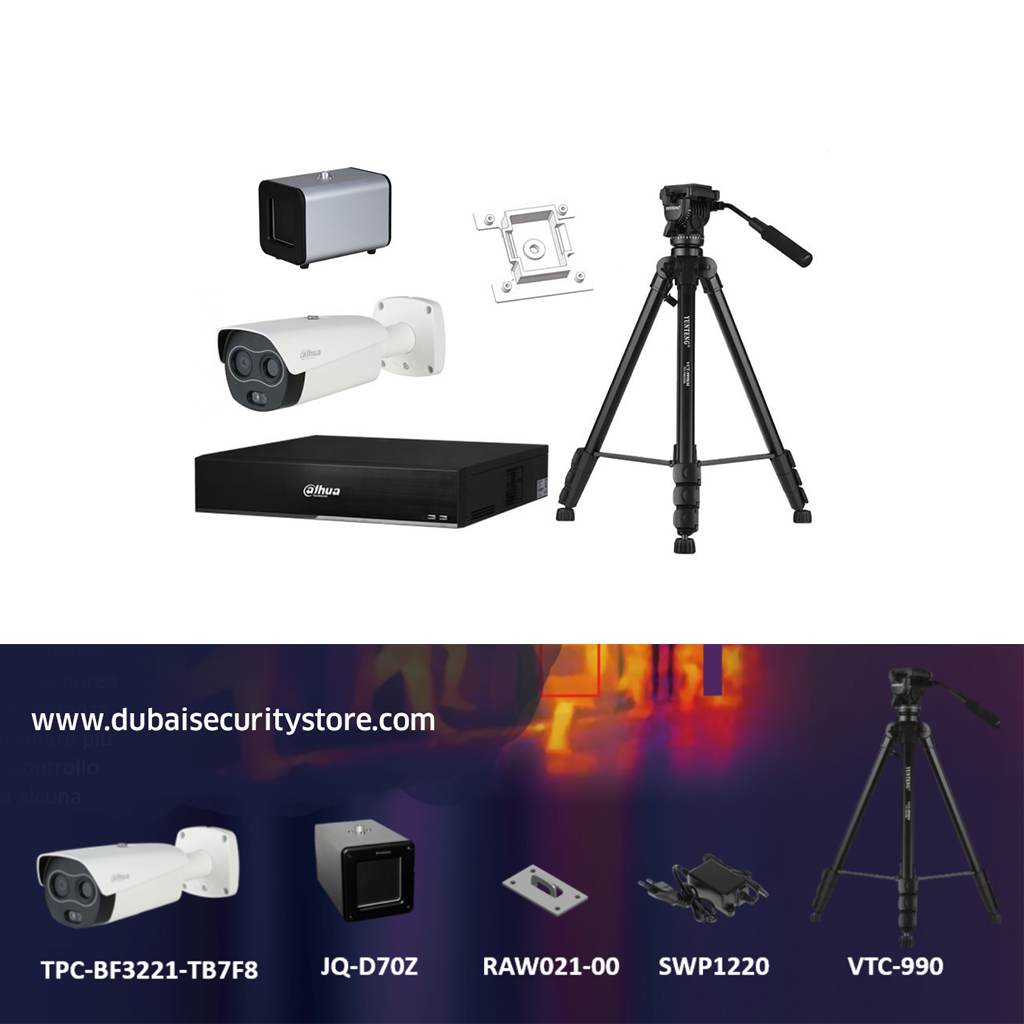

DH-TPC-BF3221-T + JQ-D70Z + NVR 5216 + DSS Express PRO + Tripod x 2 + Adapter
Thermal:256*192, 7mm
Visible:2MP, 8mm
White light and loudspeaker alarm
Temperature accuracy ±0.3℃(with blackbody)
Details :  https://www.dubaisecuritystore.com/thermal-camera/

SKU: BF3221-1 Categories: , Tags: , , ,

Description

Technical Specification
Structure Multi-sensor bullet camera
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 400×300
Pixel Pitch 17μm
Spectral Range 8μm–14μm
Thermal Sensitivity (NETD) ≤50mK
Focal Length 7.5mm; 13mm
Field of View 3.5mm: horizontal: 50.6° ; vertical: 37.8°
7mm: horizontal: 24° ; vertical: 18°
Focus Mode 3.5mm/7mm: focus free and athermalized
Aperture F1.0
Detection Distance 3.5mm: vehicle: 389m (1276ft); human: 146m (479ft)
7mm: vehicle: 778m (2552ft); human: 292m (958ft)
Recognition Distance 3.5mm: vehicle: 97m (318ft); human: 38m (125ft)
7mm: vehicle: 194m (636ft); human: 75m (246ft)
Identification Distance 3.5mm: vehicle: 49m (161ft); human: 19m (62ft)
7mm: vehicle: 97m (318ft); human: 38m (125ft)
Digital Detail

Enhancement (DDE)

Yes
AGC Auto; manual
Noise Reduction 2D NR; 3D NR
Color Palettes 18 color modes selectable such as Whitehot/Blackhot/Ironrow/Icefire.
Temperature

Measurement Range

Low temperature mode: -20°C (-4°F) to +150°C (302°F)

High temperature mode: 0°C (34°F) to +550°C (1022°F)

Temperature Accuracy Max (±5°C, ±5%)

Operating temperature: -10°C (14°F) to +50°C (122°F)

Temperature Mode Spot: 12

Line: 12

Area: 12

Support 12 rules simultaneously

Visible
Image Sensor 1/2.8 inch CMOS
Effective Pixels 1920×1080
Max. Resolution 2MP
Horizontal Definition ≥1100TVL
Min. Illumination Color: 0.005Lux
Black & white: 0.0005Lux
IR light (on): 0Lux
AGC Auto; manual
Noise Reduction 2D NR; 3D NR
S/N Ratio >56dB
White Balance Auto/indoor/outdoor/tracking/manual/sodium lamp/natural/street light
Electronic Defog Yes
Electronic Image

Stabilization (EIS)

Yes
Electronic Shutter Speed 1/3s–1/100000s (auto or manual)
BLC Yes
WDR DWDR
HLC Yes
Day/Night Auto (ICR); color/B/W
Focus Mode Manual
Focal Length 4mm; 8mm
Field of View 4mm: horizontal: 84°; vertical: 45°; diagonal: 99°
8mm: horizontal: 40°; vertical: 22°; diagonal: 46°
DORI Distance Lens Detect Observe Recognize Identify
4mm 55m (180ft) 22m (72ft) 11m (36ft) 5.5m (18ft)
8mm 110m (361ft) 44m (144ft) 22m (72ft) 11m (36ft)
Close Focus Distance 0.2m
Aperture 4mm: F2.0
8mm: F1.9
IR On/Off control Auto; manual
IR Distance 4mm: 35m (115ft)
8mm: 50m (164ft)
Audio and Video
Video Compression H.265; H.264M; H.264H; H.264B; MJEPG
Resolution Thermal:
(1280×960) (default value)/XVGA (1024×768)/VGA (640×480)/(256×192)
Visual:
1080P (1920×1080) (default value)/720P (1280×720)/D1 (704× 576/704×480)/CIF (352×288/352×240)
Video Frame Rate Thermal:
50Hz:
Main stream (1280×960@25fps/1024×768@25fps/640×480@25fps/256×192@25fps), sub stream (640×480@25fps/256×192@25fps)
60Hz:
Main stream (1280×960@30fps/1024×768@30fps/640×480@25fps/256×192@25fps), sub stream (640×480@30fps/256×192@30fps)
Visual:
50Hz:
Main stream (1920×1080@25fps/1280×720@25fps/704×576@25fps), sub stream (704×576@25fps/352×288@25fps)
60Hz:
Main stream (1920×1080@30fps/1280×720@30fps/704×480@30fps), sub stream (704×480@30fps/352×240@30fps)
Audio Compression G.711a; G.711mu; AAC; PCM
Image Encoding Format JPEG
General Function
Two-way Talk Yes
Network Protocol HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Region of Interest (ROI) Yes
Edge Storage FTP; Micro SD card (256G, hot plug)
Browser IE: IE8 and the later, and explorer with IE core
Google: 42 and the earlier
Firefox: 42 and the earlier
Safari: 10 and the earlier
User/Host 20 channels at most (the total bandwidth 64M)
Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
User Management Support 20 users at most and users are classified as two groups–administrator group and user group.
Malfunction Detection Network disconnection; IP addresses conflict; SD card error (status or storage space)
Smart Event
General IVS Analytics Tripwire/intrusion
Professional and Intelligent
Fire Detection Yes
Cold/Hot Spot Trace Auto tracking of the hottest spot and the coldest spot in the thermal image
IVS Analytics Tripwire/intrusion
Network 1 10M/100M Ethernet port (RJ-45)
Alarm Input 2 channels
Alarm Output 2 channels
Audio Input 1 channel
Audio Output 1 channel
RS-485 1 channel
Power
Power Supply 12V±20% DC, POE (802.3af), ePOE
Power Consumption <5.0W (12V DC) (basic power consumption)
<12W (12V DC, without power adaptor) (maximum power consumption)
Environment
Operating Temperature -30°C (-22°F) to +60°C (140°F)
Operating Humidity ≤95%
Self-Adaptive Auto heating to protect the chip under the cold environment
Physical Characteristics
Protection Grade IP67, anti-surge 6KV, anti-elctrostatic 8KV (touched by objects), anti-elctrostatic 15KV (air)
Dimensions 279.9mm (11.02″)×103.8mm (4.09″)×95.8mm (3.77″) (lengthxwidthxheight)
Packaging Dimensions Camera with package: 365mm (14.4″”)×175mm (6.9″”)×176mm (6.9″”) (lengthxwidthxheight)
Deliveray box: 902mm (35.5″”)×380mm (15″”)×380mm (15″”) (widthxlengthxheight)
Net Weight ≤1.4kg (3lb)
Gross Weight ≤1.9kg (4.2lb)
Installation Mode Wall mount/pole mount/corner mount
Lens Contained
Bracket Contained
Certification
Certifications CE (EN 60950:2000); FCC (FCC Part 15 SubpartB )

5MP IR Vari-focal HDCVI Bullet

Brand

Dahua
