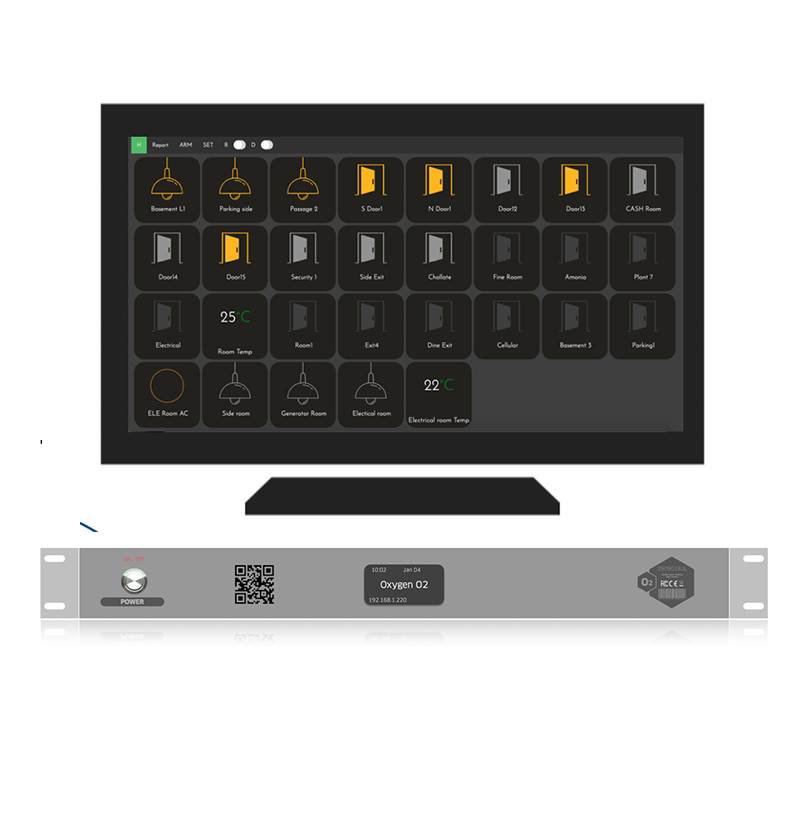

Oxygen o2 V13 Fire exit door monitoring

4,300.00AED 3,500.00AED

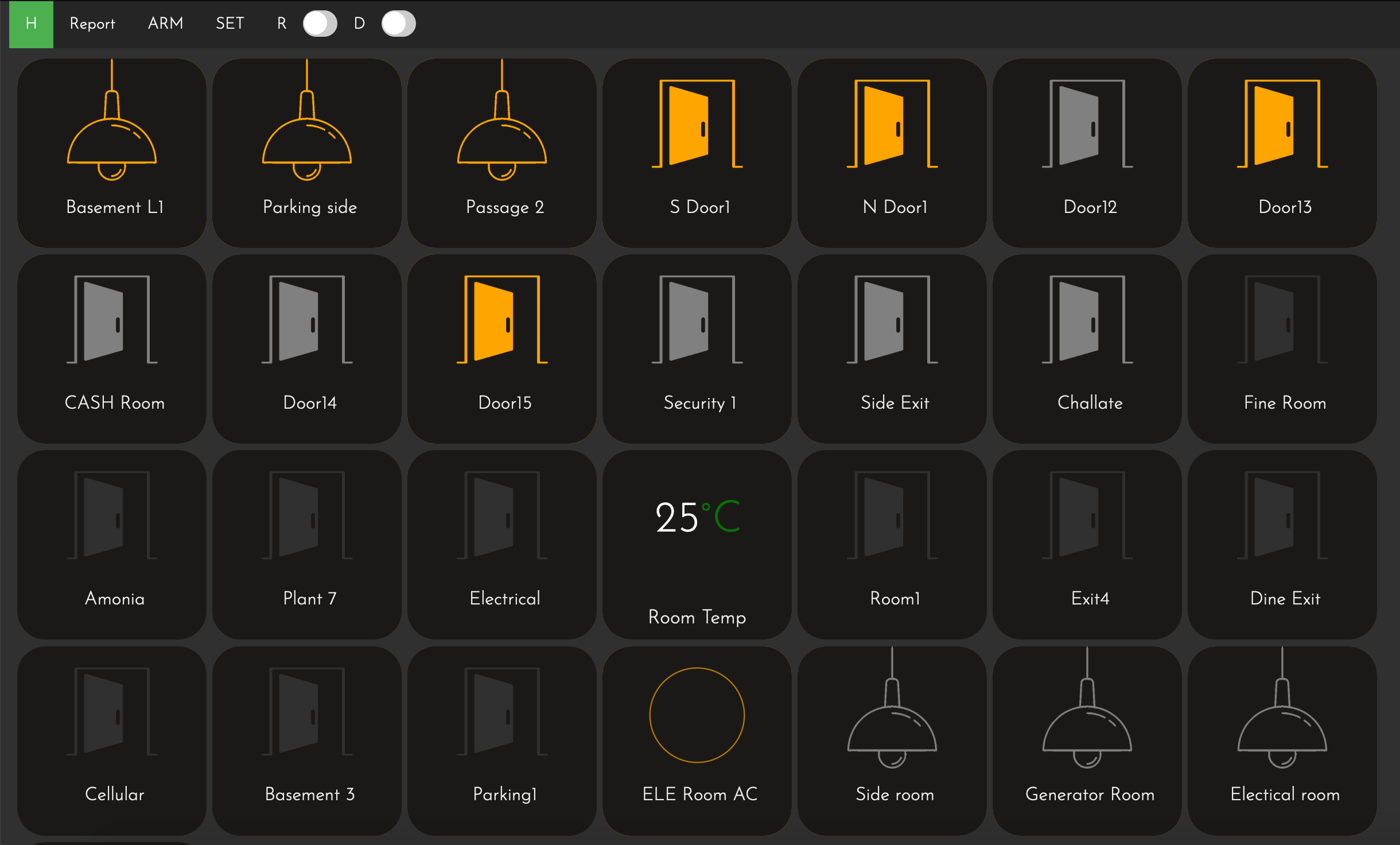

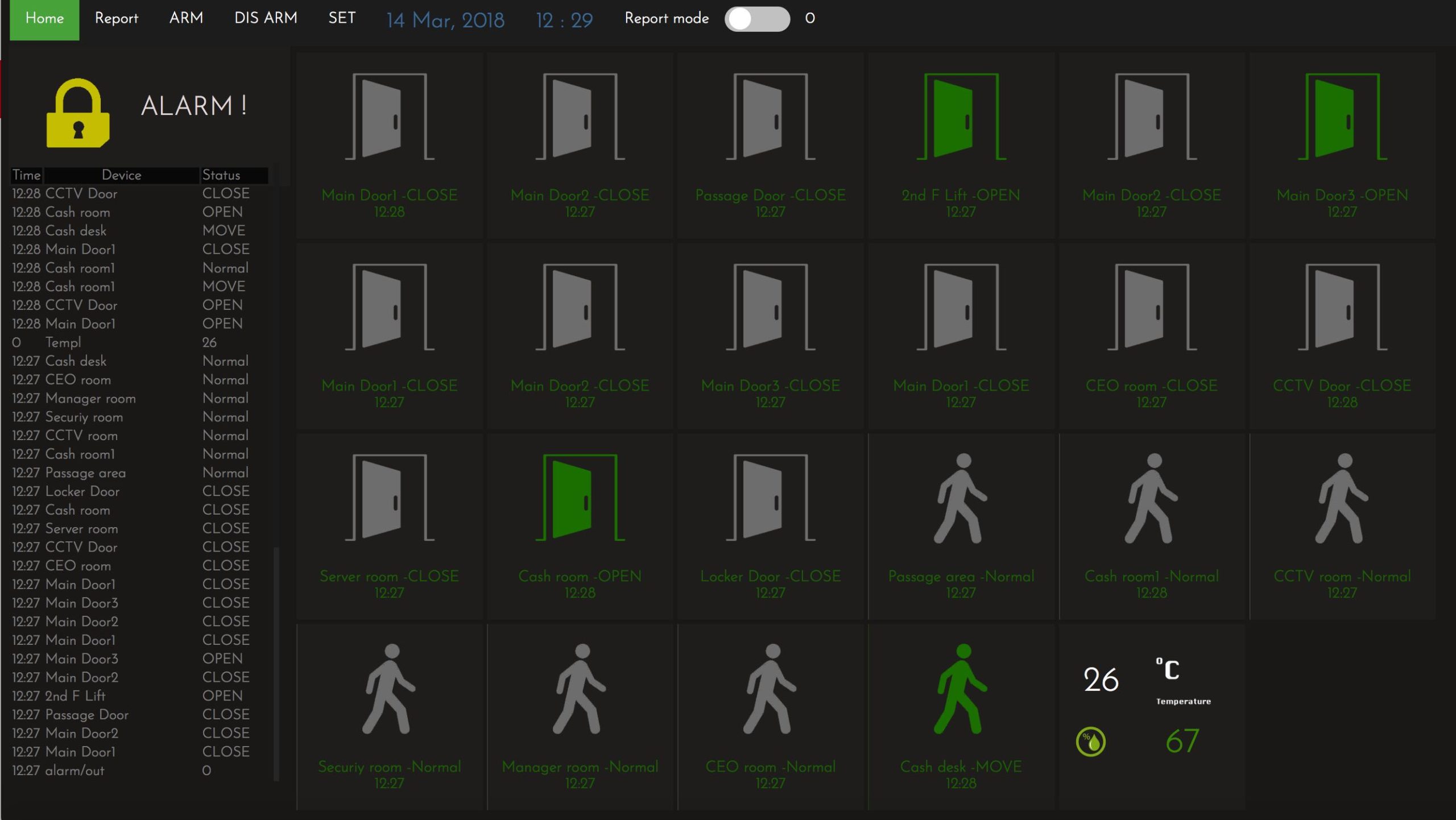

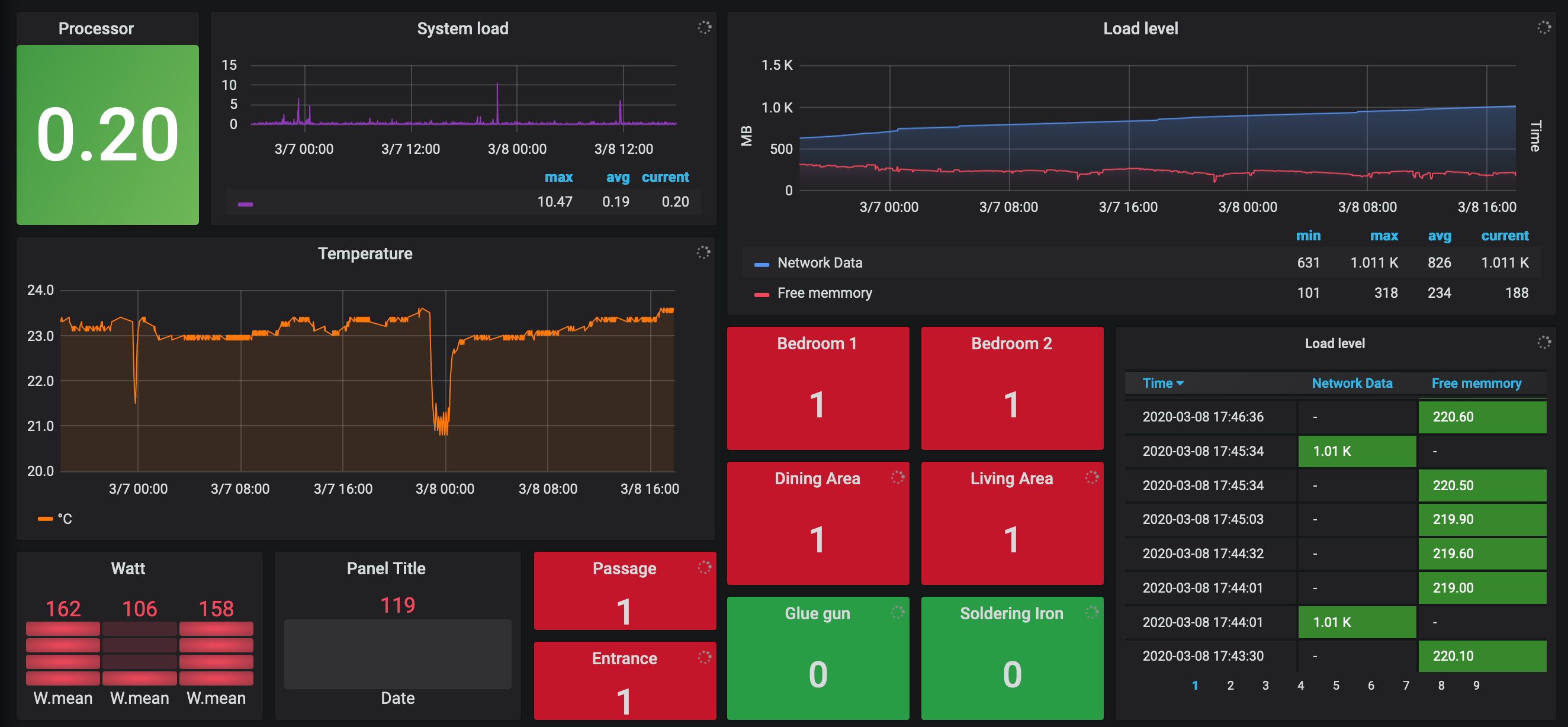

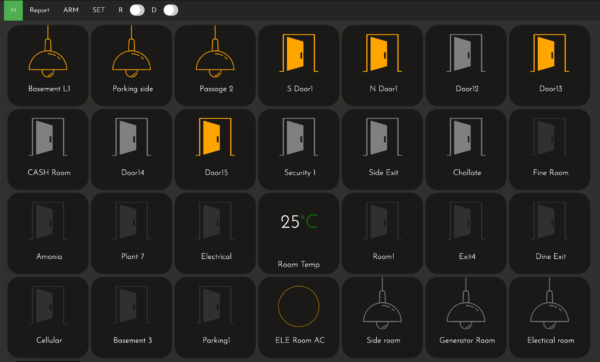

Fire Exit monitoring   – Full featured Dash board for centralized monitoring

Oxygen O2

Description

TECHNICAL SPECIFICATION
Power supply 13V DC ±10% | 110-230V 50Hz/60Hz AC  UL
Power safe Li Battery 4 AH[optional], Auto-shut down

super capacitor protection

Working memory 1GB | 2GB | 4GB
Storage 64GB class 3
Extended storage 256GB SSD [Optional]
Cloud Amazon AWS  Dedicated server
Out put control 8x 10A 220V | 5A 30V DC, Dry contact out
Working Temperature – 10°C up to 60°C
Connectivity IEEE 802.11.b/g/n/ac wireless LAN 2.4GHz and 5GHz

Bluetooth 4.2/BLE, faster Ethernet

Processor power Quad-core processor, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
Ports 1x HDMI 1.4, 4xUSB 2.0 ports
Input / Output 8x Dry contact out put Digital out

8x Digital logical input – Isolated industrial

128x Digital input expansion over i2C [optional]

Dimension [HxWxD] 46mm x 482mm x 90mm
External connections

Protocols

I2C, 1Wire, TCPIP, Wifi, MODBUS[optional], Zigbee[optional]

Zwave[optional], MQTT, GPIO, HDMI-Audio video, 433Mhz RF

Integration amazon echo, Google Home, Apple Home kit, Grafana, HTML5,

NODE JS, Python, MQTT, Node Red, Artificial Intelligence



Application area
Shopping malls Hyper market/ Super market Retail chain Warehouses Commercial buildings
Fire Exit monitoring, Temperature on critical areas, Various location temperature measurements, Critical area safety, Entrance and exit with live snapshot, General area lighting control, Power status monitoring, Power consumption monitoring, Centralized monitoring and control, Monitor from anywhere, Critical information reporting, Shop attendance – Full featured Dash board for centralized monitoring

Brand

Oxygen

Oxygen O2

Additional information

Weight 2 kg
Dimensions 80 × 10 × 5 cm
RAM

1GB, 2GB, 4GB
