Oxygen O2 Audio Server

4,900.00AED 4,300.00AED

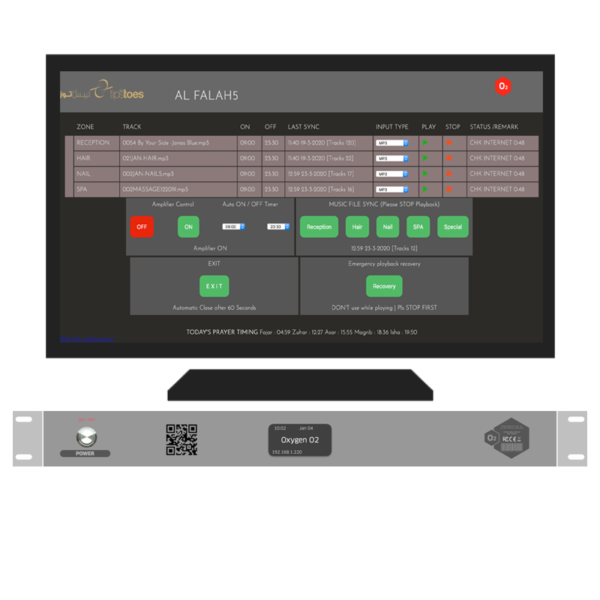

Oxygen O2 V13 – Centralized Audio Server

Oxygen O2


Power supply 13V DC ±10% | 110-230V 50Hz/60Hz AC  UL
Power safe Li Battery 4 AH[optional], Auto-shut down

super capacitor protection

Working memory 1GB | 2GB | 4GB
Storage 64GB class 3
Extended storage 256GB SSD [Optional]
Cloud Amazon AWS  Dedicated server
Out put control 8x 10A 220V | 5A 30V DC, Dry contact out
Working Temperature – 10°C up to 60°C
Connectivity IEEE 802.11.b/g/n/ac wireless LAN 2.4GHz and 5GHz

Bluetooth 4.2/BLE, faster Ethernet

Processor power Quad-core processor, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
Ports 1x HDMI 1.4, 4xUSB 2.0 ports
Input / Output 8x Dry contact out put Digital out

8x Digital logical input – Isolated industrial

128x Digital input expansion over i2C [optional]

Dimension [HxWxD] 46mm x 482mm x 90mm
External connections


I2C, 1Wire, TCPIP, Wifi, MODBUS[optional], Zigbee[optional]

Zwave[optional], MQTT, GPIO, HDMI-Audio video, 433Mhz RF

Integration amazon echo, Google Home, Apple Home kit, Grafana, HTML5,

NODE JS, Python, MQTT, Node Red, Artificial Intelligence



Oxygen O2

Additional information


1 Zone, 2Zone, 3 Zone, 4 Zone
