How to install nest thermostat in Dubai, United Arab Emirates electrical system ?

You may want to install the Nest Thermostat somewhere new
Many wired thermostats are installed in rooms that are rarely used, so the temperature that they sense can be warmer or cooler than the temperature that homeowners feel.

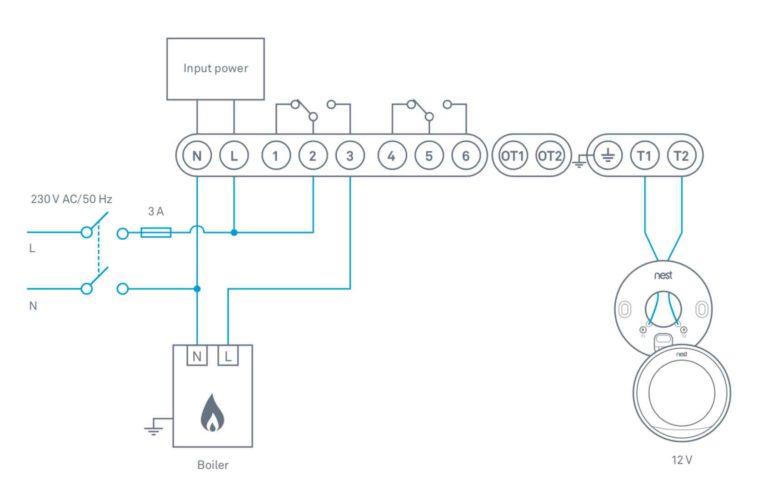

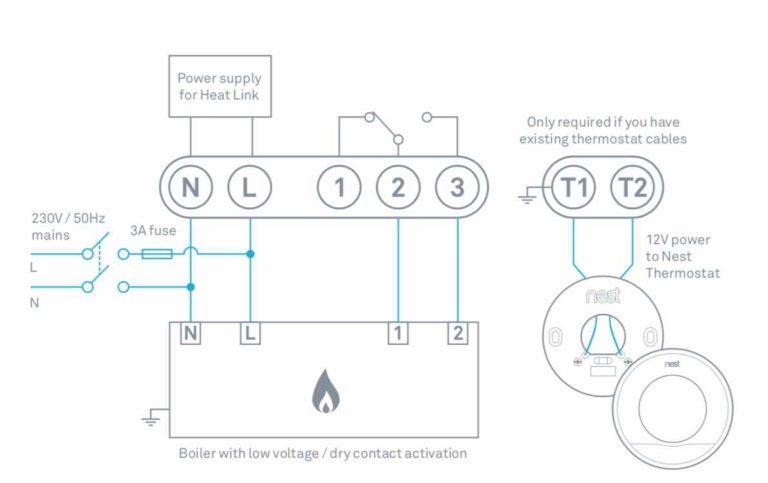

All smart thermostat works on 24V AC, but local UAE HVAC system works on 230V AC, here we required a Low voltage kit.

Where should you install it?

• Place it within 30 metres of the Heat Link. Closer is generally better. Walls and large objects between them can affect their communication range.

• The Nest Thermostat should be in a room that’s used often so that it can read the right temperature, can sense when the home is empty and know when to automatically turn down the heating.

• It should have a clear view of the room.

• Wall-mounted thermostats should be installed on an interior wall.

• Make sure that it’s away from draughts and heat sources.

• For zoned systems, install the thermostat in the zone that it’s controlling.

You may want to install the Nest Thermostat somewhere new

Many wired thermostats are installed in rooms that are rarely used, so the temperature that they sense can be warmer or cooler than the temperature that homeowners feel. If the current thermostat isn’t in a good location, install the Nest Thermostat in a new place with the Nest Stand (sold separately) in a room that’s used more often.

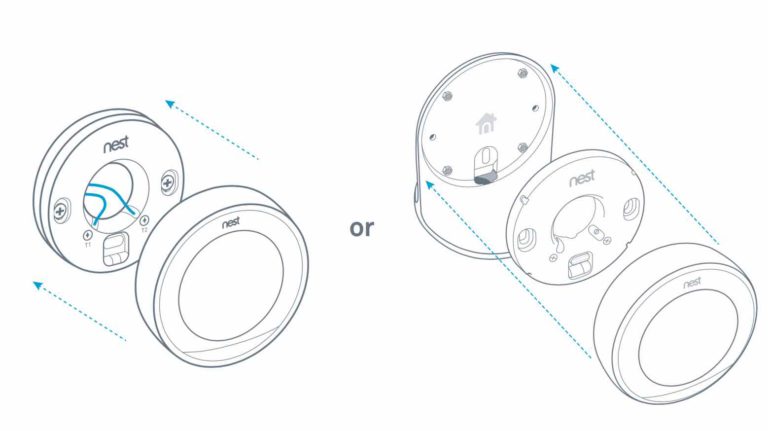

Install the Nest base

Remove the old thermostat if there
is one. You can attach the Nest base directly to the wall or use the trim plate included to cover up any marks.

If you’re using the trim plate, snap it onto the base first, then screw them to the wall as one piece.

When installed on the wall, the Nest Thermostat should be 1.2-1.5 m above the floor.
