-36%

Oxygen O2S02T | Smart Thermal camera with Access control

8,340.00AED 5,320.00AED

BULK QTY Available on special price MOQ 20 nos

For DEMO CALL. (971) 048805577  / +971 508031282

Dual Camera: 1xVideo,1xLiving detection
Rated voltage: dc 12V input
Panel size: 219x111x21.5mm
Stand size: 33x189mm
Weight: 2.3Kgs
Basement plates / Floor stand order seperatly
Thermal Camera | Smart Face Detection | Intelligent Camera

Categories: ,
Oxygen O2

Description

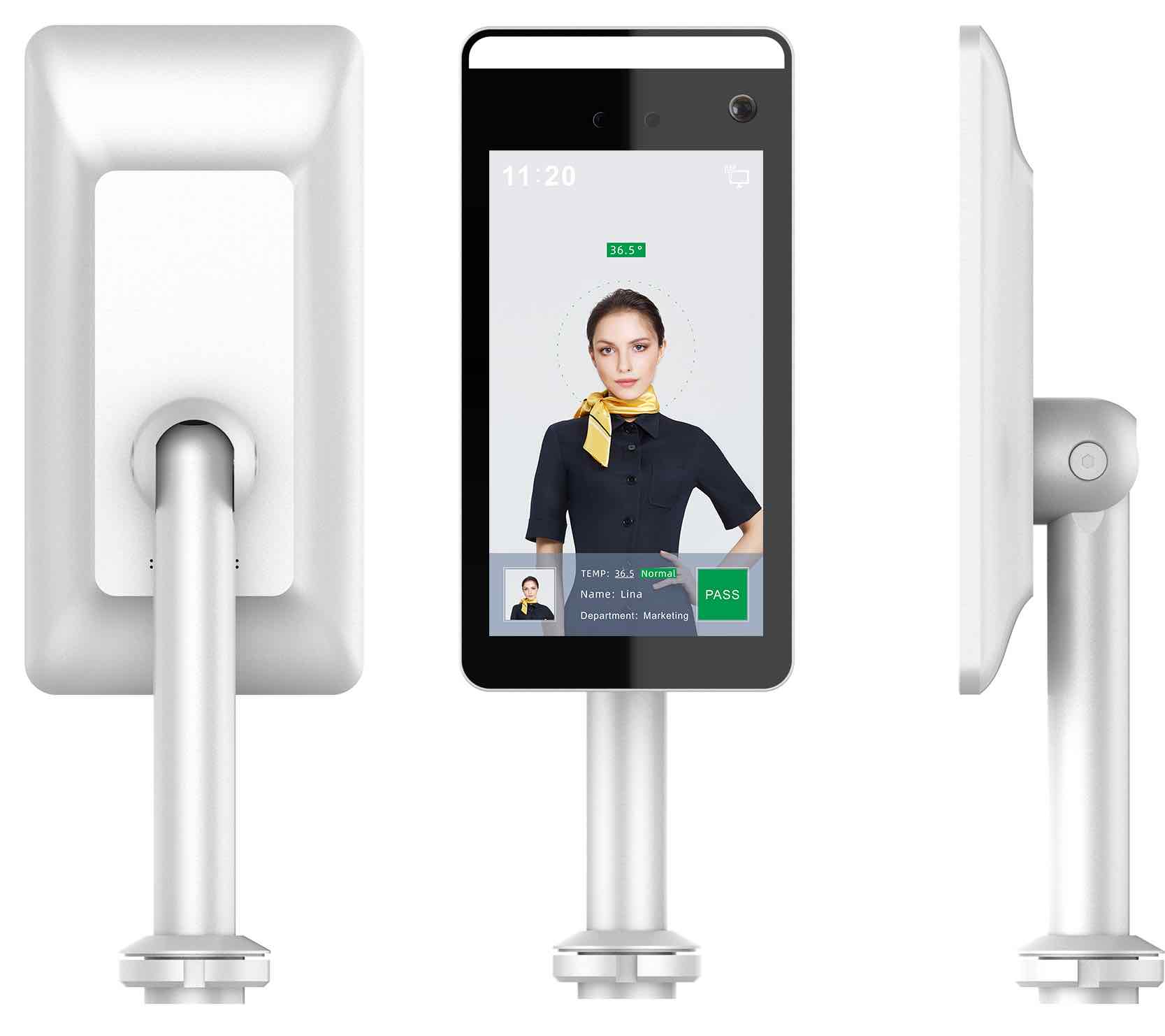

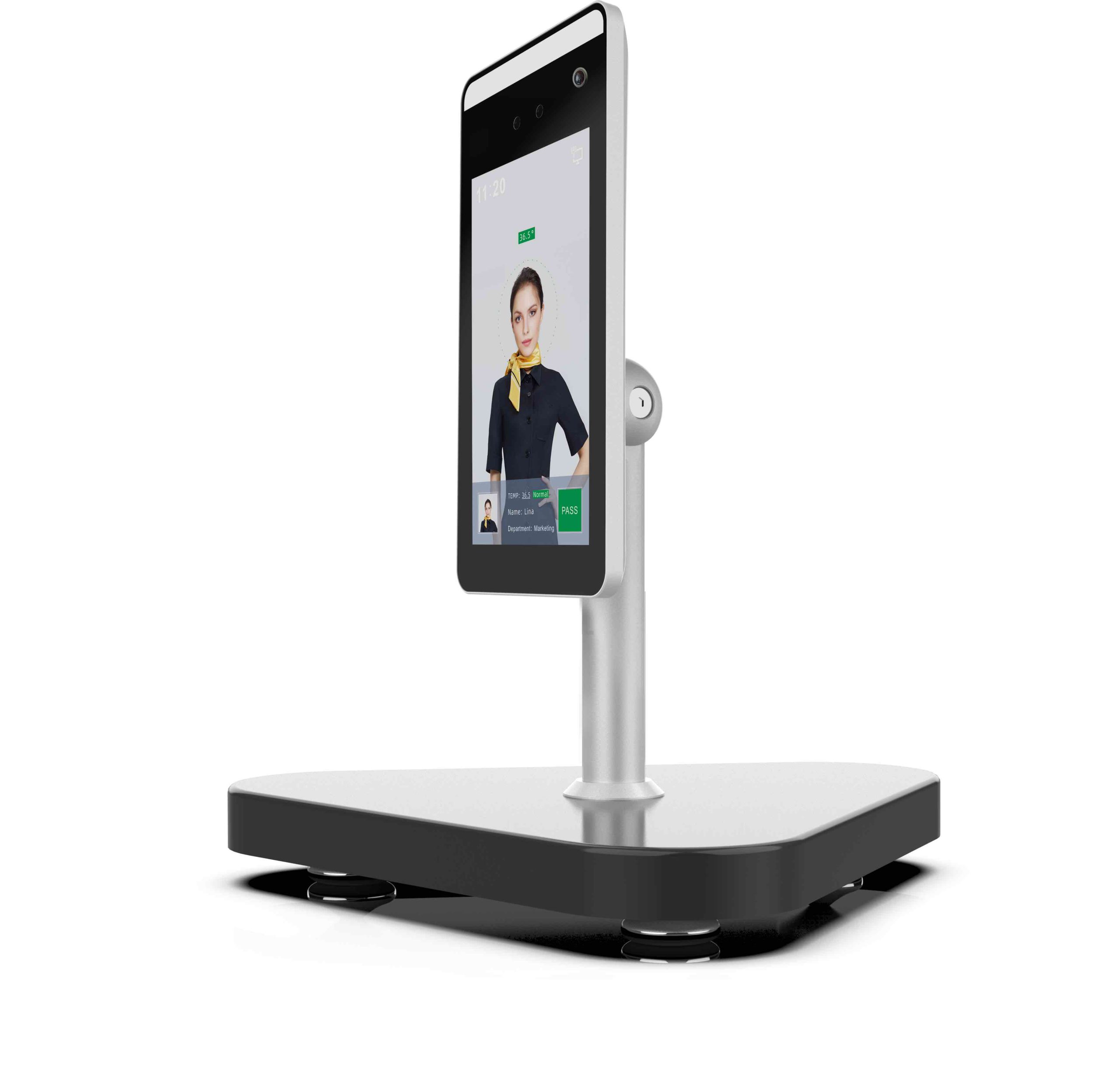

Oxygen O2 Smart Thermal camera with built in access control

Main Processor MX3520
Operating System Embedded LINUX
RAM DDR3 512MB
ROM EMMC 8GB
Screen
Dimensions 7 inch IPS HD LCD screen
Resolution 600*1024
Camera
Type 2MP  camera
Sensor 1/5″  GC2145
Resolution NIR 800*600 15fps
Lens 2.4mm
Camera
Type Daily camera
Sensor 1/2.8″ SONY Starvis Back-illuminated CMOS sensor IMX307
Resolution Color 1920*1080 30fps
Lens 4.5mm
Body temperature detection
Measuring site Full screen recognition
Temperature range Indifferent human body temperature measurement

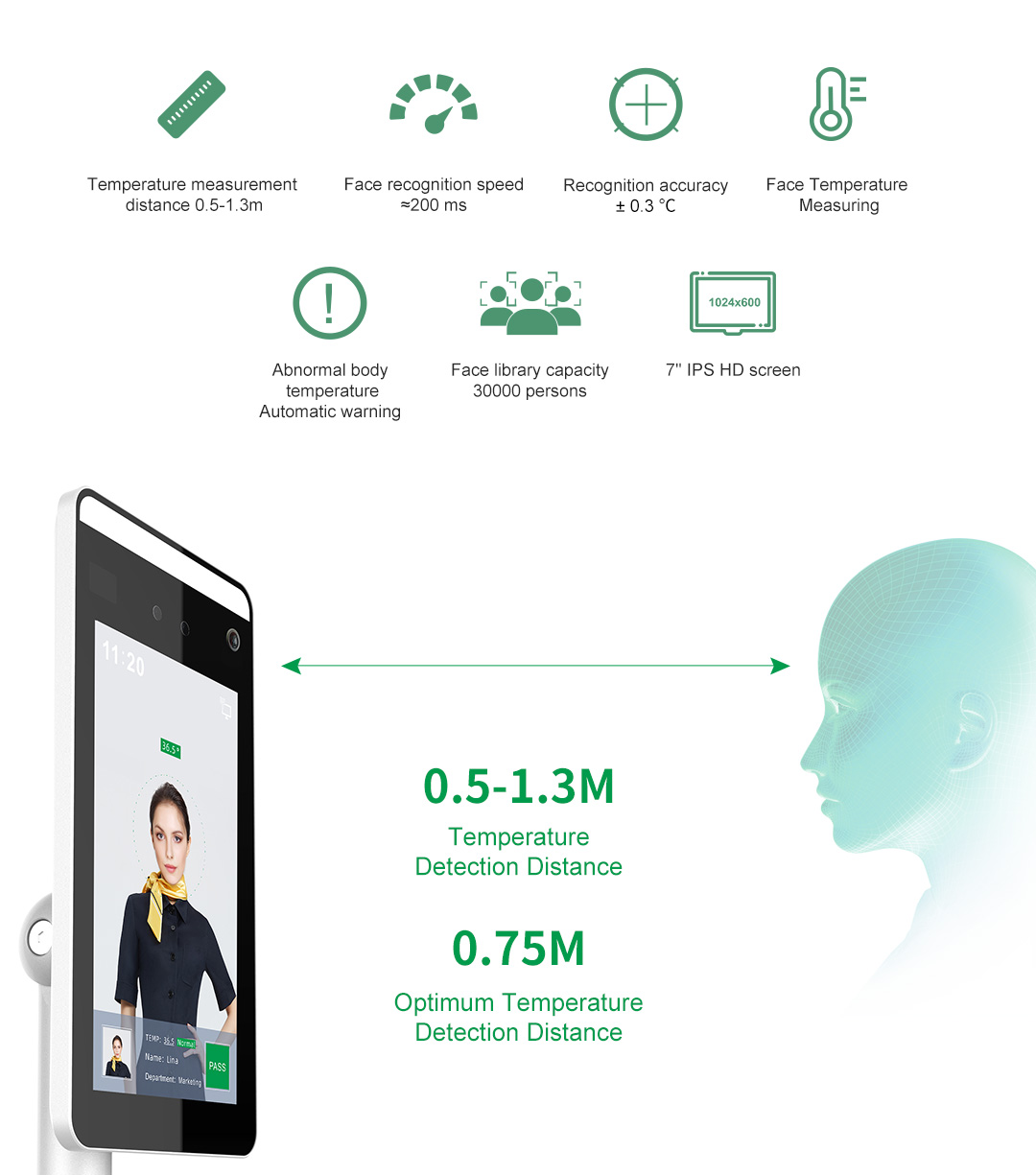

Temperature measuring distance 0.5-1.3m, 0.75m is the best
Temperature measurement accuracy ± 0.3℃
Face recognition
Detection Type Mask detection only
Face recognition distance 0.5-2.3m
Face database capacity Max support 30,000 faces
Face Posture Vertical  58°-60°, horizontal  35°
Occlusion Ordinary glasses and short sea retention have no effect on recognition.
Expression Under normal circumstances, slight expressions do not affect recognition.
Response Speed About 200ms
Face exposure Support
Local Storage Support storage of 25,000 records
Recognition area Full screen recognition
Upload Method TCP, HTTP,  MQTT
Network Functions
Network protocol IPv4, TCP/IP, HTTP
Interface protocol Private protocol
Security Mode Authorized  password
Event linkage Voice broadcast,Abnormal event upload to the platform
System Upgrade Support remote upgrade
Accessories
Supplementary light IR light, LED white light
Identification Module /
Audio out Built in Speaker support voice broadcast after successful recognition
Network Module /
Interface
Network Interface RJ45 10M/100M Network Adaptation
Alarm Input /
Alarm Output /
Relay Output Support
RS485 interface Support
TF card slot /
HDMI /
Reset key Support
Anti-disassembly switch /
General
Housing Aluminum alloy, Ultra-white tempered glass panel,  IP66
Operating Temperature  10 ° C ~ 50 ° C
Working humidity 10% -90% Non-condensing
Storage Temperature  -40 ° C ~ 70 ° C
Storage humidity 5% -95% Non-condensing
Protection Level /
Power Supply DC12V
Power dissipation (maximum) ≤ 12 W
Dimensions (mm) 219 (W) * 111 (H) * 21.5 (T)
Bracket size (mm)  φ33*189

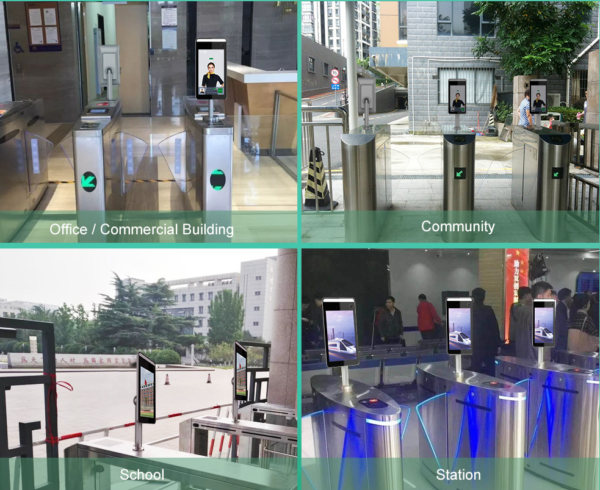

Installation Method Desktop installation/Floor  installation/Gate machine installation/
Column installation/Wall installation

<iframe width=”560″ height=”315″ src=”https://www.youtube.com/embed/REIyYCKLQ7c” frameborder=”0″ allow=”accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture” allowfullscreen></iframe>

Brand

Oxygen

Oxygen O2

Additional information

Weight 3.2 kg
